Steel Manufacturing Blog: Keeping it Steel

Oversized Clevis Rods: A Unique Order Fulfilled

Posted on Mon, Aug 10, 2020 @ 10:02 AM

If you were just starting out as a structural steel fabricator, it wouldn’t be long before you saw a tie rod, hanger rod, or cross brace assembly called for on a building plan. Typically, these assemblies are used in conjunction with a clevis, or more commonly two clevises, and a turnbuckle. While we go into depth on tie rods, clevises and turnbuckles in other articles, today we are focusing on a particularly unique clevis rod order that The Steel Supply Company fulfilled.

Read More

Tags: Clevis Rods, Hanger Rods, Turnbuckle Rods, Turnbuckles

Hillside Washer Flange

Posted on Fri, Jan 12, 2018 @ 11:55 AM

Hillside Washers can function in the basic form shown in Figure 1. All the necessary features are in place, along with the load strength to ensure durable performance.

Read More

Tags: Hillside Washers, Turnbuckle Rods, STEEL SUPPLY, Turnbuckles, I-Beam, Thermal Break

Turnbuckle and Clevis Rods: One Left Hand Thread Per Rod

Posted on Wed, Feb 03, 2016 @ 10:21 AM

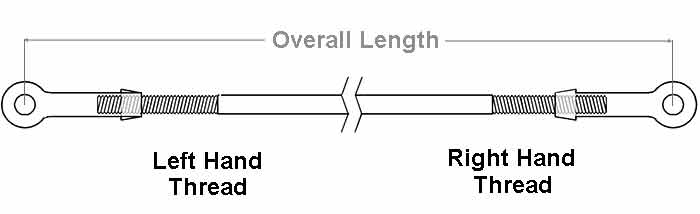

The Clevis Rod and the Turnbuckle Rod offer the ability to provide tensile strength by increasing their tension as they are tightened. The tightening is done by opposing left hand and right hand threads. In the Clevis Rod drawing shown below rotating the threaded rod overhand towards the installer it will draw the two Clevises closer, creating more tension. Rotate the Rod overhand away from the installer will move the clevises away from each other, relieving tension.

Read More

Tags: Turnbuckle Rods

Hillside Washer Features

Posted on Thu, May 28, 2015 @ 03:45 PM

Expanding on the blog post from April 2015, there are two features unique to the Hillside Washer that allow it to function. The Locking Tab and the Spheroid Shape.

Read More

Tags: Hillside Washers, Turnbuckle Rods

Grinnell Standards: Clevis and Turnbuckle Rods

Posted on Wed, Mar 25, 2015 @ 10:46 AM

Grinnell Standards are a way of limiting the variables when designing a clevis rod or turnbuckle rod. While clevis rods and turnbuckle rods can be manufactured in any diameter and set of specifications, keeping it simple is always desirable for the structural steel fabricator. The main structural concern is tensile strength. Round bar diameter is the primary feature that controls tensile strength and the remaining components are designed around that.

Read More

Tags: Clevis Rods, Hanger Rods, Sag Rods, Turnbuckle Rods

Hot Dip Galvanizing: Threaded Steel, Anchor Bolts, Turnbuckle Rods & Threaded Studs

Posted on Mon, Jul 28, 2014 @ 11:20 AM

For most fabricated structural and miscellaneous steel, hot dip galvanizing is a fairly basic process. The galvanizers follow the applicable specification, usually ASTM A123 / A123M, or the corresponding AASTHO spec. As most steel members or finished assemblies are stationary, excess zinc is not a problem.

Read More

Tags: Anchor Bolts, Threaded Steel, Turnbuckle Rods, Hot Dip Galvanizing
