Hillside Washer Flange

Posted on Fri, Jan 12, 2018 @ 11:55 AM

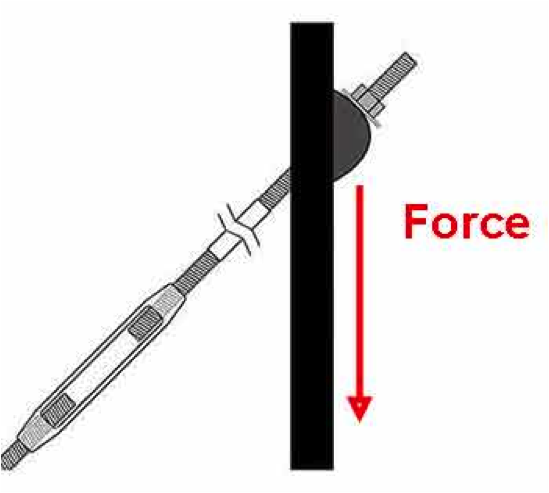

Hillside Washers can function in the basic form shown in Figure 1. All the necessary features are in place, along with the load strength to ensure durable performance.

Read More

Tags: Hillside Washers, Turnbuckle Rods, STEEL SUPPLY, Turnbuckles, I-Beam, Thermal Break

Hillside Washers and Bracer Rod Washers

Posted on Wed, Sep 28, 2016 @ 08:00 AM

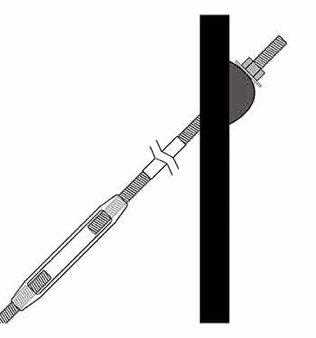

The typical Hillside Washer, also known as a Bracer Rod Washer, is made from ductile iron and serves the purpose of providing a perpendicular surface regardless of the angle of the Turnbuckle Rod they are anchoring. As shown in the illustration, the oval surface will allow a nut and washer to seat itself at the proper angle just by the tension created when tightening the turnbuckle.

Read More

Tags: Hillside Washers

Hillside Washer Features

Posted on Thu, May 28, 2015 @ 03:45 PM

Expanding on the blog post from April 2015, there are two features unique to the Hillside Washer that allow it to function. The Locking Tab and the Spheroid Shape.

Read More

Tags: Hillside Washers, Turnbuckle Rods

Hillside Washers

Posted on Mon, Apr 27, 2015 @ 09:39 AM

Hillside Washers are used when connecting braces that pass through structural members at any angle other than 90°. Unlike inside connections requiring Clevis Rod Assemblies (Fig.1), when the brace passes through the structural member it eliminates the need for Clevises and Clevis Pins.

Read More

Tags: Hillside Washers, Clevis, I-Beam
