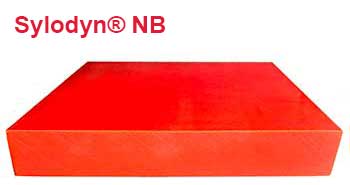

Discover the exceptional properties of Sylodyn® NB, a closed-cell polyurethane designed for high resilience and effective vibration dampening.
Material Features:
Fabrication Options: Sylodyn® can be easily fabricated, cut, and punched to meet your specific requirements, or purchased in bulk.
Standard Stock Dimensions:
| Thickness | 0.5 inch / 1.0 inch | 12.5 mm / 25 mm |
| Roll | 4.9 ft wide | 1.5 m wide |
| 16.4 ft. long | 5.0 m long | |
| Strip | up to 4.9 ft. wide | up to 1.5 m wide |
| up to 16.4 ft. long | up to 5.0 m long | |
| Material Properties | Inch / psi | mm |
| Color | Red | Red |
| Static Range of Use | 10.9 | 0.075 |
| Load Peaks | 290 | 2.00 |
| Mechanical Loss Factor | 0.07 | 0.07 |
| Rebound Resilience % | 70 | 70 |
| Compression Set % | < 5 | < 5 |
| Static Modulus of Elasticity | 108.8 | 0.75 |
| Dynamic Modulus of Elasticity | 123.3 | 0.85 |
| Static Shear Modulus | 17.4 | 0.12 |
| Dynamic Shear Modulus | 24.7 | 0.17 |
| Min. Tensile Strength at Rupture | 145 | 1.00 |
| Min. Tensile Elongation at Rupture | 300 | 300 |
| Abrasion3 | ≤ 0.0549 | ≤ 900 |
| Coefficient of Friction | ||
| Steel | 0.7 | 0.7 |
| Concrete | 0.7 | 0.7 |
| Wood | 0.5 | 0.5 |
| Specific Volume Resistance | > 4•109 | > 1010 |
| Thermal Conductivity in W/mk | 0.07 | 0.07 |
| Temperature Range °F | - 22 to 158 | - 30 to 70 |
| Temperature Peak °F | 248 | 120 |
| Flammability | class E/EN 13501 | class E/EN 13501 |
Experience the reliability and versatility of Sylodyn® NB for your vibration dampening needs. To learn more about Structural Bearings, contact us or request a free quote today.
