Structural Bearing Pads

Custom fabricated structural bearings for buildings, bridges, and infrastructure.

Structural bearing pads are fabricated to your specification.


Thermal Break Bearings - Horizontal


Also called thermal insulation material, thermal break bearings are made from fiberglass-reinforced laminate. They are designed to maintain structural integrity while minimizing heat loss. (Fig. 1.) These horizontal thermal break bearings are often made from Fiber Reinforced Plastic, which has varying compressive strength, sometimes as high as 60,000 psi.





Thermal Break Bearing - Structural

Typically made of High density Structural Urethane and designed for use under base plates, these pads can have compressive strengths up to 1,800 lbs. psi. (Fig. 2)









Elastomeric Bearings


Uniformly transfer specified vertical loads to the support structure while allowing horizontal movement and rotation (Fig. 3.)





Seismic Bearings


Effective isolation in all seismic zones and soil types. Variable choices of stiffness, damping and other properties (Fig. 4.)







Fabreeka Pads


Fabric reinforced pads composed of tightly twisted duck fabric molded into a commercial elastomeric compound, Fabreeka pads are suited for the reduction of impact shock, vibration and structure-borne noise (Fig. 5.)









Isolation Washers / Bushings

Fabreeka bushings used to eliminate metal to metal contact and break the vibration or shock transmission path. (Fig. 6.)









Request a Quote





Steel Supply Co. offers Horizontal Thermal Break Bearings, also known as thermal insulation material.

Fig. 1 Thermal Break Bearings - Horizontal

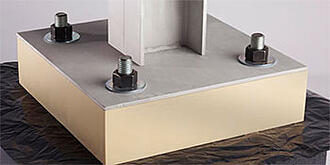

Steel Supply Co. offers Structural Thermal Break Bearings, made of high density structural urethane.

Fig. 2 Thermal Break Bearing - Structural

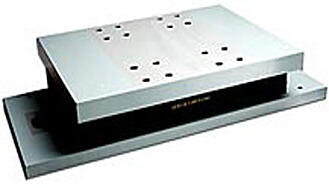

Steel Supply Co. offers Elastomeric Bearings to transfer vertical loads to the support structure.

Fig. 3 Elastomeric Bearing

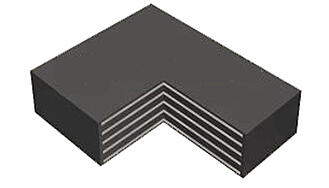

Steel Supply Co. offers Seismic Bearings for isolation in seismic zones and soil types.Fig. 4 Seismic Bearings

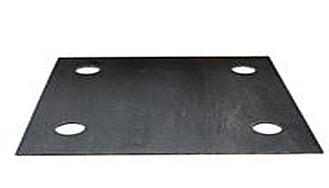

  Steel Supply Co. offers Fabreeka Pads made of duck fabric.
Fig. 5 Fabreeka Pads

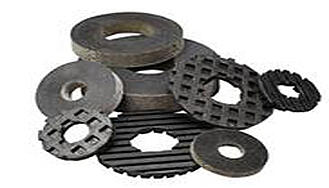

Steel Supply Co. offers Isolation Washers/Bushings to break metal to metal contact.

Fig. 6 Isolation Washers





To learn more about Structural Bearing Pads, contact us or request a free quote today.
