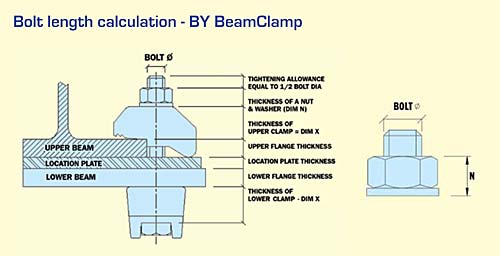

bolt length calculation - BY BeamClamp

Type BF3

Product A in. B in. C in. D in.
code
BF3G12 3/16 1-9/16 1-9/16 9/16
BF3G16 3/16 2 2-1/16 11/16
BF3G20 3/16 2-3/16 2-3/16 13/16

Type BF4

Product A in. B in. C in. D in.
code
BF4G12 3/8 1-9/16 1-9/16 9/16
BF4G16 3/8 2 2-1/16 11/16
BF4G20 3/8 2-3/16 2-3/16 13/16

Type BH2

Product A in. B in. C in. D in.
code
BH2G12 1/16 1-9/16 1-9/16 9/16
BH2G16 1/16 1-7/8 1-7/8 11/16
BH2G20 1/16 2 2 13/16
