Beam Clamp Components Type BT and BW
Below are specifications for Type BT and BW Beam Clamp Components manufactured by Steel Supply Co.

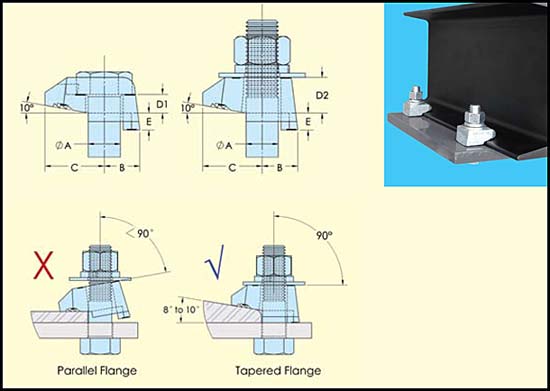

| BeamClamp Components Type BT & BW | ||||||||||||
| Product | Product | A Bolt Dia | B | C | D1 | D2 | E | Torque (ft lb) | Tensile SWL (lbs) | Friction SWL (lbs) | ||
| code | code | 1 | 2 | Width | ||||||||
| BT G12 | BW G12 | 1/2 | 5/8 | 1 | 5/16 | 1/2 | 3/16 | 1/4 | 1-1/8 | 51 | 1293 | 292 |
| BT G16 | BW G16 | 5/8 | 11/16 | 1-1/4 | 3/8 | 11/16 | 1/4 | 5/16 | 1-7/16 | 109 | 2219 | 877 |
| BT G20 | BW G20 | 3/4 | 13/16 | 1-3/8 | 7/16 | 13/16 | 1/4 | 3/8 | 1-3/4 | 210 | 3703 | 2473 |
To learn more about our Beam Clamp Component Type BT and BW products, or any product in our Steel Connections category, contact us or request a free quote today.
