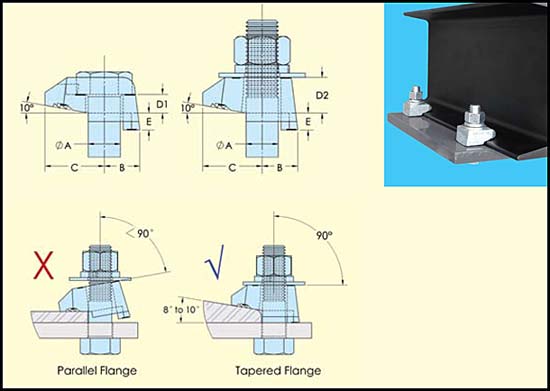

BeamClamp Components Type BT & BW |
||||||||||
| Product Code | Bolt Grade | A Bolt Dia. | B in. | C in. | D in. | E in. | Width in. | Torque (ft/lb) | Tensile SWL (lbs) | Frictional SWL (lbs) |
| BB1LNG12 | Grd 5 | 1/2 | 9/16 | 1-13/16 | 11/16 | 1/4 | 1-1/8 | 51 | 1292 | 287 |
| BB1LNG16 | Grd 5 | 5/8 | 11/16 | 1-3/4 | 5/8 | 7/16 | 1-7/16 | 109 | 2218 | 872 |
