Beam Clamp BL Flange Clamp

BL data (1)

BeamClamp BL Flange Clamp

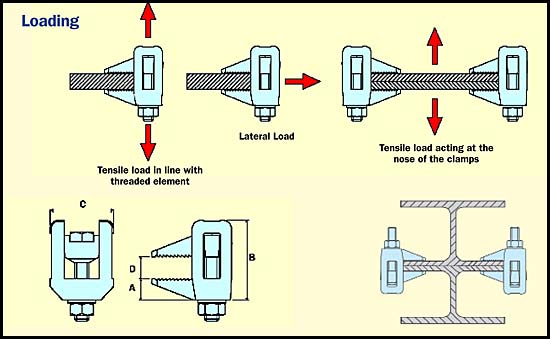

            3 to 1 Factor of safety applied
          Tightening torque (ft lb) Tensile load in line with rod (lbs) Tensile load at nose (lbs) (per pair) Lateral load (lbs)
Product A B C D
code
BLG08A 1/2 1-3/4 1-9/16 0 to 3/16 7 225 1664 56
BLG10A 9/16 2-5/16 1-7/8 0 to 1-3/16 14 562 2098 90
BLG12A 5/8 2-9/16 2 0 to 1-3/8 29 1124 2473 135
BLG16A 13/16 3-3/4 2-5/16 0 to 2-3/16 66 1686 4571 157
BLG20A 7/8 4-9/16 2-5/8 0 to 2-3/4 132 2023 5246 169
BLG24A 1 5-3/4 2-15/16 0 to 3-3/4 147 2360 7718 180
