FC-1010-CS 1/2 RET

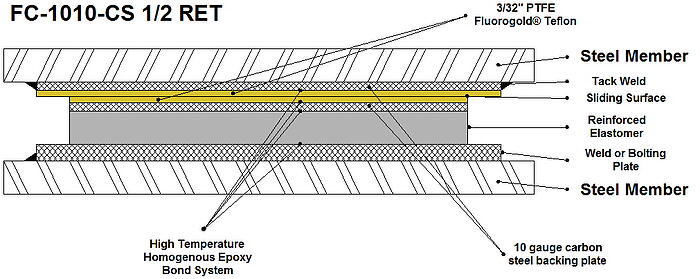

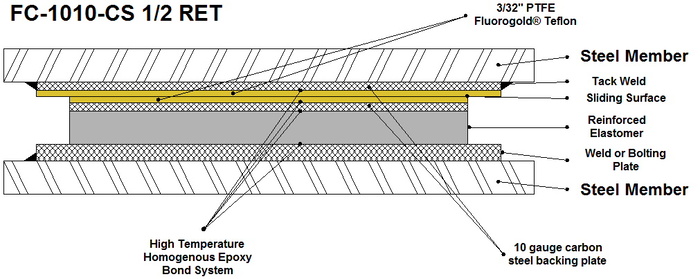

Slide Bearing Assembly with tack or full welded elements. This configuration incorporates 1/2" thick Viblon or Reinforced Elastomer Bearing Pad in the lower element, which meets AASHTO Spec 18.4.10.1. The FC-1010-CS 1/2 RET compensates for expansion and deflection at higher load values.

Upper Element :
3/32" thick Fluorogold® bonded to 10 gauge carbon steel backing plate, tack welded to the structural steel member or sole plate.

Lower Element :
3/32" thick Fluorogold® bonded to 10 gauge carbon steel backing plate, then vulcanized to 1/2" thick Viblon or Reinforced Elastomer Bearing Pad, AASHTO spec. 18.4.10.1. A steel plate is also bonded below the Viblon pad so the lower element can be welded in place. The thickness of the neoprene and the steel plates are variable.

Specifications

Loads : 75 psi to 1,500 psi
Temperature : -50° to +200° F

Alternate Elements

Slide Bearing backing plates can be:

Carbon Steel (CS)
Stainless Steel (SS)
Corten Steel (CT)
Aluminum (AL)
Galvanized Carbon Steel (GL)
Galvanizing can be Hot Dip or Electroplated
