FC-1010-CS 1/2 RE

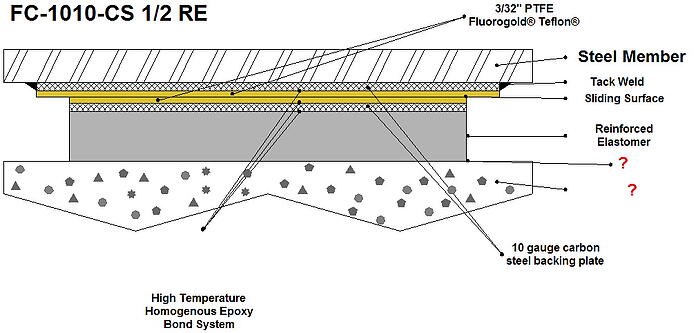

Slide Bearing Assembly with a tack welded upper element. This configuration incorporates 1/2" thick Viblon or Reinforced Elastomer Bearing Pad in the lower element. The underside of the Viblon bearing pad is not bonded to the concrete. This Slide Bearing Assembly does require a minimum of 200 psi. to function properly. It reduces installation time, does not require a specific installation location and allows for rotation, deflection, expansion and vibration at higher load values.

Upper Element :
3/32" thick Fluorogold® bonded to 10 gauge carbon steel backing plate, tack welded to the structural steel member or sole plate.

Lower Element :
3/32" thick Fluorogold® bonded to 10 gauge carbon steel backing plate, then vulcanized to 1/2" thick Viblon or Reinforced Elastomer Bearing Pad, AASHTO spec. 18.4.10.1. The thickness of the neoprene and the steel plates are variable.

Specifications

Loads : 75 psi to 1,500 psi
Temperature : -50° to +200° F

Alternate Elements

Slide Bearing backing plates can be:

Carbon Steel (CS)
Stainless Steel (SS)
Corten Steel (CT)
Aluminum (AL)
Galvanized Carbon Steel (GL)
Galvanizing can be Hot Dip or Electroplated
