Eyebolt 316 Stainless Shoulder Pattern

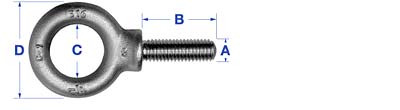

  A B C D
  Shank Dia.
Stock & Thread Shank Eye Eye
No. UNC-2A Length I.D. O.D. Weight
K2021-316SS 1/4-20 1 3/4 1-3/16 0.06
K2022-316SS 5/16-18 1-1/8 7/8 1-7/16 0.11
K2023-316SS 3/8-16 1-1/4 1 1-21/32 0.20
K2025-316SS 1/2-13 1-1/2 1-3/16 2-1/16 0.42
K2027-316SS 5/8-11 1-3/4 1-3/8 2-1/2 0.70
K2028-316SS 3/4-10 2 1-1/2 2-13/16 1.08
K2030-316SS 1-8 2-1/2 1-13/16 3-9/16 2.46
K2032-316SS 1 1/4-7 3 2-3/16 4-7/16 4.87
