Askew Head Bolts

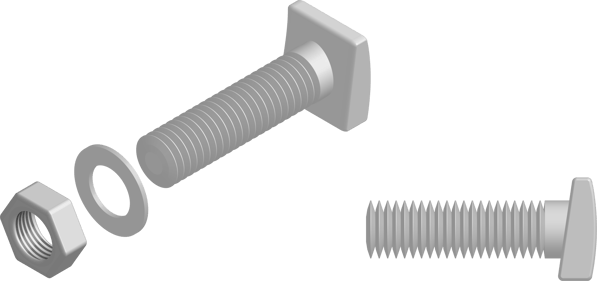

Askew Head Bolt - The Steel Supply Company-1


Askew head bolts work in conjunction with wedge inserts to form a structural connection between concrete and steel members (typically a relieving angle or lintel). The head of an askew bolt is curved at an angle so that it can be easily inserted and secured within a wedge insert embedded in concrete. The Steel Supply Company stocks multiples sizes of askew head bolts and multiple finishes, including carbon steel, hot dip galvanized, and stainless steel.

The table below shows the askew head bolts that The Steel Supply Company keeps on hand to accommodate for same day delivery. However, The Steel Supply Company is capable of supplying with askew head bolts that are made to order with specified bolt diameter and bolt length. To submit a request, please use our INFO OR QUOTE form.

Bolt Diameter Part Number Bolt Length Askew Head Dimensions Available Finishes Askew Head Differential Measurements
WI-384 1-1/2" 1-5/16" x 1-5/16" Carbon Steel, Hot Dip Galvanized

Askew Head Bolt - Head Differential Measurements (1-5/16")

1-5/16" x 1-5/16"

WI-385 2" 1-5/16" x 1-5/16"
WI-386 2-1/2" 1-5/16" x 1-5/16"
WI-389 3" 1-5/16" x 1-5/16"
WI-393 4" 1-5/16" x 1-5/16"
WI-394 6" 1-5/16" x 1-5/16"
WI-8343 3" 1-5/16" x 1-5/16" Stainless Steel (Plain)
WI-8346 4-1/2" 1-5/16" x 1-5/16"
WI-593 3" 1-1/8" x 1-1/8" Carbon Steel, Hot Dip Galvanized

Askew Head Bolt - Head Differential Measurements (1-1/8")

1-1/8" x 1-1/8"

WI-594 4" 1-1/8" x 1-1/8"
WI-596 6" 1-1/8" x 1-1/8"

Return to Masonry Anchors

To learn more about Wedge Inserts and Askew Head Bolts, contact us or request a free quote today.
