Slide Bearings



Slide Bearings for Structural Steel, Pipelines, Machinery, Heating Systems, etc.



  • Steel Supply Co. offers Fluorogold Slide Bearings, made from a special formulation of PTFE (Teflon®) with a glass fiber aggregate.

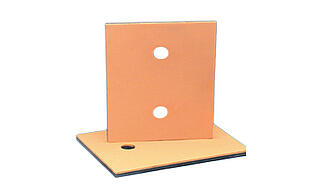

  • Steel Supply Co. offers Teflon Slide Bearings, also known as Polytetrafluoroethylene or PTFE.

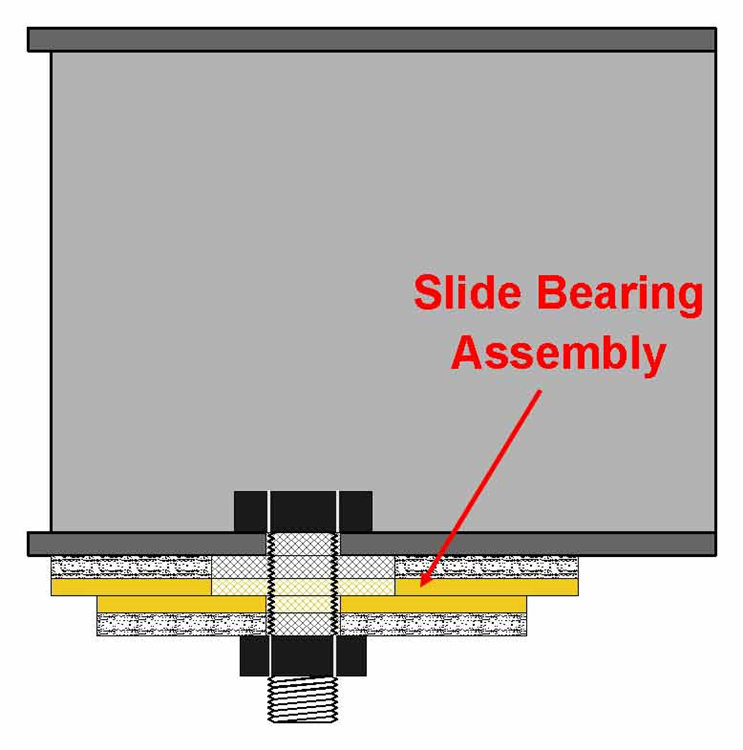

  • Steel Supply Co. demonstrates Slide Bearing assembly.

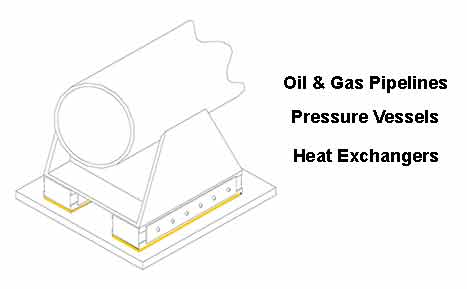

  • Example of Slide Bearings for use in Oil & Gas Pipelines, Pressure Vessels & Heat Exchangers.

Fluorogold Teflon
Slide Bearings

(Note: Fluorogold® is a trademarked product of the St. Gobain Corporation. Teflon® is a trademarked product of the DuPont Corporation)

For Teflon® / PTFE Slide Bearings (click here)

For GRAPHITE Slide Bearings (click here)

FLUOROGOLD® Slide Bearings are made from a special formulation of PTFE (Teflon®) that is re-informed with a glass fiber aggregate. This provides a structural material that has significant compressive strength without cold flow, yet retains the low friction (.06) and chemically inert characteristics of unfilled PTFE.

A standard assembly is 3/32" teflon® bonded to 1/8" thick carbon steel. The designation that often appears on shop drawings is FC-1010-CS. This designation will vary if the Slide Bearing steel plate is stainless steel or if the thickness changes.

All other configurations can be made to order, including thick carbon steel plates, stainless steel and even commercial grade rubber (see Fig. 1. below)

More on Slide Bearings

Teflon® is a registered trademark of the DuPont Corporation.

FLUOROGOLD® is a registered trademark of Saint Gobain and is used with permission through exclusive license.

Slide Bearings

Available for same day shipment.

All Slide Bearings in stock are standard FC-1010-CS.

Catalog of ALTERNATE CONFIGURATIONS.

Item # 250-12 x 12

Slide Bearing Kit - 12" x 12"
FC-1010-CS
10 ga Carbon Steel
3/32" thick PTFE (Teflon®, Fluorogold®)
6 pcs. per kit
Plain Steel


Item # 250-12 x 12 HDG

Slide Bearing Kit - 12" x 12"
FC-1010-CS
10 ga Carbon Steel
3/32" thick PTFE (Teflon®, Fluorogold®)
6 pcs. per kit
Hot Dip Galvanized


Item # 250-15 x 15


Slide Bearing Kit - 15" x 15"
FC-1010-CS
10 ga Carbon Steel
3/32" thick PTFE (Teflon®, Fluorogold®)
5 pcs. per kit
Plain Steel


Item # 250-15 x 15 HDG


Slide Bearing Kit - 15" x 15"
FC-1010-CS
10 ga Carbon Steel
3/32" thick PTFE (Teflon®, Fluorogold®)
5 pcs. per kit
Hot Dip Galvanized

Steel Supply Co. offers Teflon Slide Bearings.

click on image
to enlarge

Fluorogold Slide Bearings are made from a special formulation of PTFE (Teflon®).

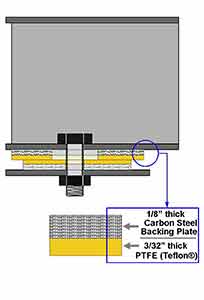

A standard Slide Bearing assembly is 3/32" teflon® bonded to 1/8" thick carbon steel.

Steel Supply Co. offers Full Surface Slide Bearings with Fluorogold Teflon.

Slide Bearings Made to Order

Any size or configuration Slide Bearing can be made to order. As well, substrate materials can be varied to suit any application. Stainless Steel, Hot Dip Galvanized Carbon Steel, even Commercial Grade Neoprene Rubber.

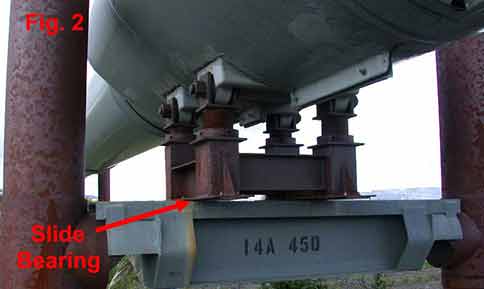

 As Fig. 1 to left shows Slide Bearings are also used in Machinery applications. Another very common use for Slide Bearings is Oil and Gas Pipelines.

To learn more about Slide Bearings, Bearing Pads, and Neoprene, contact us or request a free quote today.
