Beam Clamp Packing Pieces

The Steel Supply Company manufacturers non-welded steel connections - clamping systems, floor connections, cavity connections and pipe/conduit support.

Below are specifications for Beam Clamp Packing Pieces manufactured by Steel Supply Co.



Steel Supply Co. offers Beam Clamp Packing Pieces as part of our Steel Connections category.

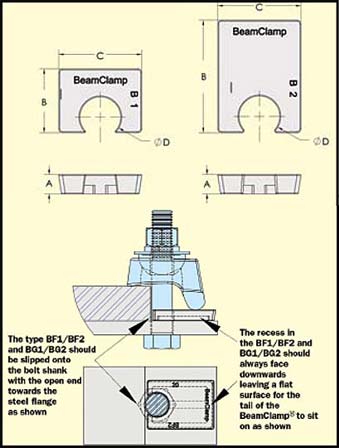

Beam Clamp Packing Pieces Technical Data

BF1 Packing   Long Packers for
Product Bolt A B C D dia. Type BK1
code dia.   BF2 Packing
BF1G08 5/16 1/8 9/16 7/8 3/8   Product Bolt A B C D dia.
BF1G10 3/8 3/16 11/16 1-1/8 7/16   code dia.
BF1G12 1/2 1/4 7/8 1-3/16 9/16   BH1Z08 5/16 1/16 5/8 7/8 3/8
BF1G16 5/8 5/16 1-1/8 1-3/8 11/16   BH1Z10 3/8 1/16 13/16 1-1/8 7/16
BF1G20 3/4 3/8 1-5/16 1-11/16 13/16   BH1Z12 1/2 1/8 15/16 1-3/16 9/16
BF1G24 1 1/2 1-3/4 2-3/16 1-1/16   BH1Z16 5/8 1/8 1-1/8 1-3/8 11/16
              BH1Z20 3/4 3/16 1-5/16 1-11/16 13/16
              BH1Z24 1 3/16 1-3/4 2-3/16 1-1/16
BG1 Packing
Product Bolt dia. A B C D dia.
code   BG2 Packing
BG1G08 5/16 5/16 9/16 7/8 3/8   Product
BG1G10 3/8 3/8 11/16 1-1/8 7/16   code Bolt dia. A B C D dia.
BG1G12 1/2 1/2 7/8 1-3/16 9/16   BG2G08 5/16 5/16 1 7/8 3/8
BG1G16 5/8 5/8 1-1/8 1-3/8 11/16   BG2G10 3/8 3/8 1-3/16 1-1/8 7/16
BG1G20 3/4 3/4 1-5/16 1-11/16 13/16   BG2G12 1/2 1/2 1-1/2 1-3/16 9/16
BG1G24 1 1 1-3/4 2-3/16 1-1/16   BG2G16 5/8 5/8 1-15/16 1-3/8 11/16
              BG2G20 3/4 3/4 2-1/4 1-11/16 13/16
              BG2G24 1 1 3 2-3/16 1-1/16
BH1 Packing
Product Bolt dia. A B C D dia.
code
BF2G08 5/16 1/8 1 7/8 3/8
BF2G10 3/8 3/16 1-3/16 1-1/8 7/16
BF2G12 1/2 1/4 1-1/2 1-3/16 9/16
BF2G16 5/8 5/16 1-15/16 1-3/8 11/16
BF2G20 3/4 3/8 2-1/4 1-11/16 13/16
BF2G24 1 1/2 3 2-3/16 1-1/16

To learn more about our Beam Clamp Packing Pieces, or any product in our Steel Connections category, contact us or request a free quote today.
