Beam Clamp Components Type BA and BB

Beam Clamp Components Type BA and BB

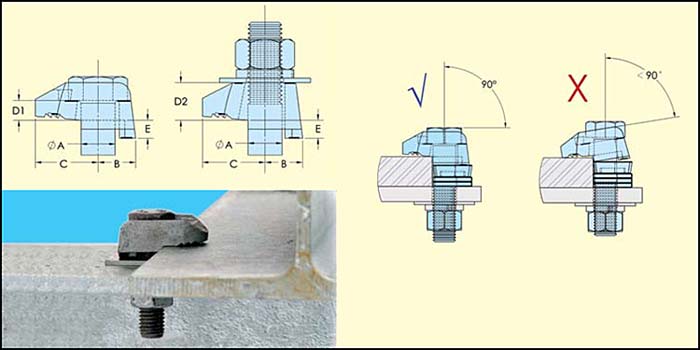

Type BA, BB Technical Data
                        Tensile SWL (lbs) (per bolt) Friction SWL (lbs) (per 4 bolts)
Product Product A E Torque
code code Bolt Dia B C D1 D2 1 2 3 Width  (ft lb)
BA G08 BB G08 5/16 3/8 5/8 3/16 3/8 X 1/8 X 13/16 4 281 X
BA G10 BB G10 3/8 1/2 13/16 1/4 7/16 1/8 3/16 5/16 1 14 562 X
BA G12 BB G12 1/2 5/8 1 5/16 1/2 3/16 1/4 3/8 1-1/8 51 1293 292
BA G16 BB G16 5/8 11/16 1-1/4 3/8 11/16 1/4 5/16 7/16 1-7/16 109 2219 877
BA G20 BB G20 3/4 13/16 1-3/8 7/16 13/16 5/16 3/8 1/2 1-3/4 210 3703 2473
BA G24 BB G24 1 1 1-15/16 1/2 1 3/8 1/2 5/8 2-1/8 355 4743 4047
