# Eyebolt Carbon Plain Pattern

![eyebolt plain](https://www.thesteelsupplyco.com/hs-fs/file-14741153-jpg/images/eyebolt_plain.jpg)

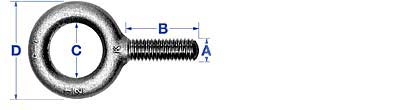

|   | **A** | **B** | **C** | **D** | **Weight** |
| --- | --- | --- | --- | --- | --- |
|   | **Shank Dia.** |   |   |   |  |
| **Stock** | **& Thread** | **Shank** | **Eye** | **Eye** |  |
| **No.** | **UNC-2A** | **Length** | **I.D.** | **O.D.** |  |
| K2001 | 1/4-20  | 1  | 3/4  | 1 3/16  | 0.06 |
| K2002 | 5/16-18  | 1 1/8  | 7/8  | 1 7/16  | 0.10 |
| K2003 | 3/8-16  | 1 1/4  | 1  | 1 21/32  | 0.15 |
| K2004 | 7/16-14  | 1 3/8  | 1 3/32  | 1 27/32  | 0.21 |
| K2005 | 1/2-13  | 1 1/2  | 1 3/16  | 2 1/16  | 0.30 |
| K2006 | 9/16-12  | 1 5/8  | 1 9/32  | 2 9/32  | 0.55 |
| K2007 | 5/8-11  | 1 3/4  | 1 3/8  | 2 1/2  | 0.61 |
| K2008 | 3/4-10  | 2  | 1 1/2  | 2 13/16  | 0.98 |
| K2009 | 7/8-9  | 2 1/4  | 1 11/16  | 3 1/4  | 1.53 |
| K2010 | 1-8  | 2 1/2  | 1 13/16  | 3 9/16  | 2.06 |
| K2011 | 1 1/8-7  | 2 3/4  | 2  | 4  | 2.96 |
| K2012 | 1 1/4-7  | 3  | 2 3/16  | 4 7/16  | 4.11 |
| K2014 | 1 1/2-6  | 3 1/2  | 2 1/2  | 5 3/16  | 6.73 |
| K2015 | 1 3/4-5  | 3 3/4  | 2 7/8  | 6 1/16  | 11.00 |
| K2016 | 2-4 1/2  | 4  | 3 1/4  | 6 7/8  | 16.25 |
| K2017** | 2 1/2-4  | 5  | 4  | 8 9/16  | 28.00 |
