Rod Anchors designed to extend above thick Fireproof Coatings.

Fireproof Rod Anchor - Submit Request

rod anchor fireproof

Figure 1.



fireproof rod anchor

Figure 2.

weld on ties

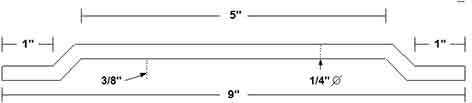

Figure 3.   Standard Rod Anchor (item #310)

 Rod Anchor

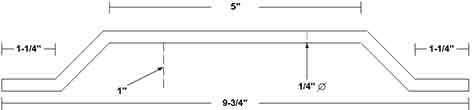

Figure 4.   Fireproof Rod Anchor (item #312)

weld on anchor rod

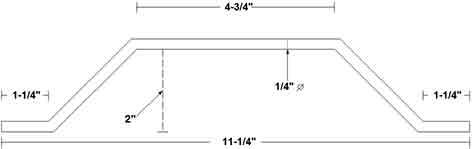

 Figure 5.   2" Fire Proof Rod Anchor (item #314)

weld on anchor rod

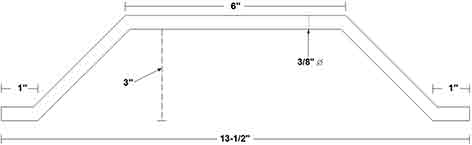

Figure 6.    3" Fire Proof Rod Anchor (item #310-090727) Longer, higher Rod Anchors are made from stronger 3/8" diameter wire to limit deflection.

Fire Proof Rod Anchors can be made to your specification.

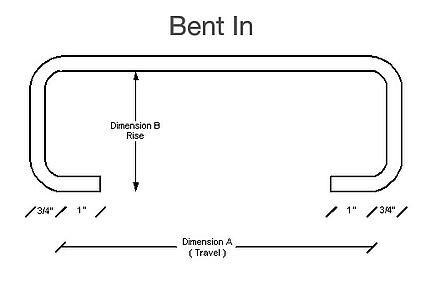

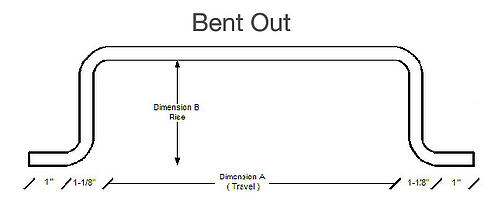

In addition, these Rod Anchors can also be made with bends at 90 degree angles and the legs bent in or out. This will allow for I-beams with limited web space between flanges.

fire proof weld onrod anchor fireproof

Fireproof Rod Anchor - Purchasing Guide | Downloadable                       Fireproof Rod Anchor - Purchasing Form | Downloadable
